debugging kernel driver and understanding i/o routing with various structures
Let’s debug a very simple driver from pavel’s latest book on kernel programming and understand different structures along with their relationship and overall...
memory tracking through nt!PoolHitTag
Let’s explore how nt!PoolHitTag can be useful for while tracking memory issues. Along with useful windbg command like !pool, !poolfind, !verifier etc.
Sample driver
I have compiled the driver for Windows7 x86 by changing “Target OS Version”
sample driver without memory leak
Windbg logs

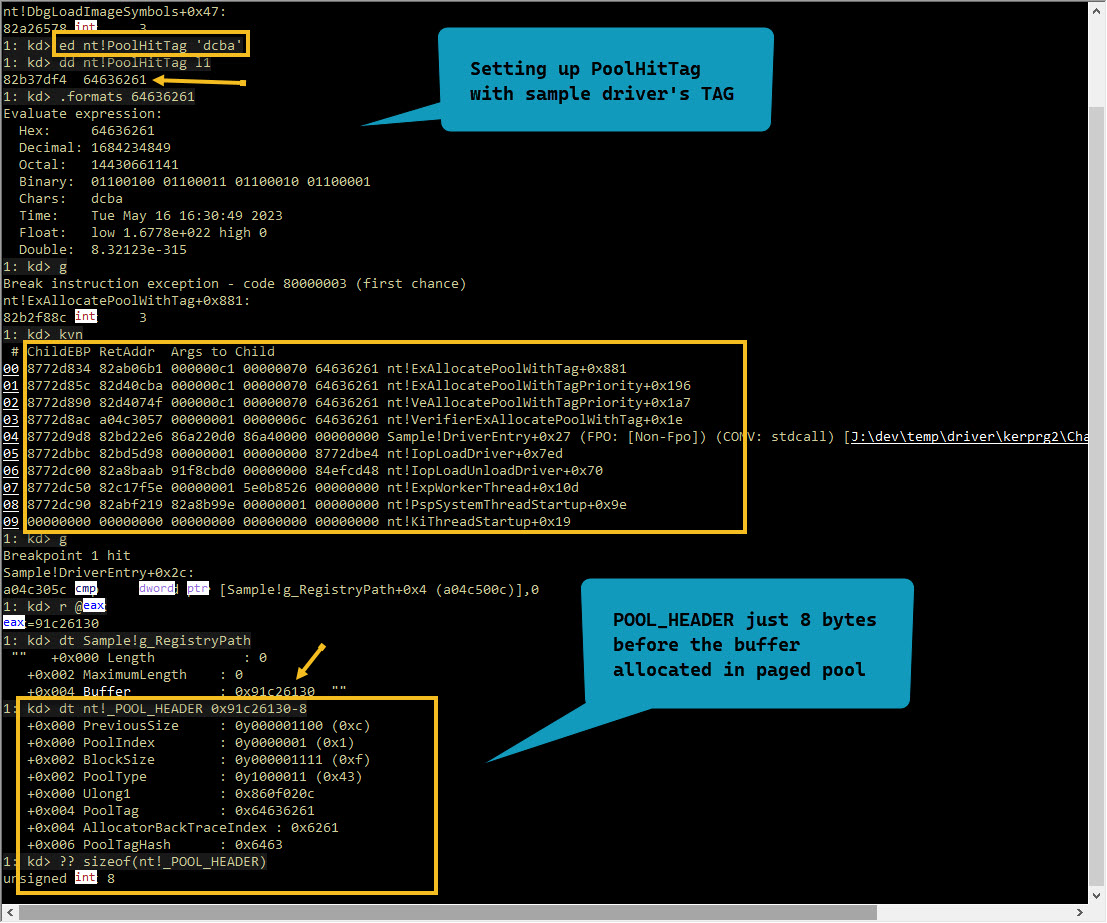

# Setup PoolHitTag with our driver's pool tag
1: kd> ed nt!PoolHitTag 'dcba'
1: kd> dd nt!PoolHitTag l1
82b37df4 64636261
1: kd> .formats 64636261
Evaluate expression:
Hex: 64636261
Decimal: 1684234849
Octal: 14430661141
Binary: 01100100 01100011 01100010 01100001
Chars: dcba <--- driver's pool tag
Time: Tue May 16 16:30:49 2023
Float: low 1.6778e+022 high 0
Double: 8.32123e-315
1: kd> g
Break instruction exception - code 80000003 (first chance)
nt!ExAllocatePoolWithTag+0x881:
82b2f88c int 3
# ExAllocatePoolWithTag is hit when trying to allocate paged pool memory
1: kd> kvn
# ChildEBP RetAddr Args to Child
00 8772d834 82ab06b1 000000c1 00000070 64636261 nt!ExAllocatePoolWithTag+0x881
01 8772d85c 82d40cba 000000c1 00000070 64636261 nt!ExAllocatePoolWithTagPriority+0x196
02 8772d890 82d4074f 000000c1 00000070 64636261 nt!VeAllocatePoolWithTagPriority+0x1a7
03 8772d8ac a04c3057 00000001 0000006c 64636261 nt!VerifierExAllocatePoolWithTag+0x1e
04 8772d9d8 82bd22e6 86a220d0 86a40000 00000000 Sample!DriverEntry+0x27 (FPO: [Non-Fpo]) (CONV: stdcall) [J:\dev\temp\driver\kerprg2\Chapter02\Sample\Sample.cpp @ 16]
05 8772dbbc 82bd5d98 00000001 00000000 8772dbe4 nt!IopLoadDriver+0x7ed
06 8772dc00 82a8baab 91f8cbd0 00000000 84efcd48 nt!IopLoadUnloadDriver+0x70
07 8772dc50 82c17f5e 00000001 5e0b8526 00000000 nt!ExpWorkerThread+0x10d
08 8772dc90 82abf219 82a8b99e 00000001 00000000 nt!PspSystemThreadStartup+0x9e
09 00000000 00000000 00000000 00000000 00000000 nt!KiThreadStartup+0x19
# Let's examine the memory buffer
1: kd> g
Breakpoint 1 hit
Sample!DriverEntry+0x2c:
a04c305c cmp dword ptr [Sample!g_RegistryPath+0x4 (a04c500c)],0
1: kd> r @eax
eax=91c26130
1: kd> dt Sample!g_RegistryPath
"" +0x000 Length : 0
+0x002 MaximumLength : 0
+0x004 Buffer : 0x91c26130 ""
# On x86 Win7 pool header is 8 bytes before the buffer
1: kd> ?? sizeof(nt!_POOL_HEADER)
unsigned int 8
1: kd> dt nt!_POOL_HEADER 0x91c26130-8
+0x000 PreviousSize : 0y000001100 (0xc)
+0x000 PoolIndex : 0y0000001 (0x1)
+0x002 BlockSize : 0y000001111 (0xf)
+0x002 PoolType : 0y1000011 (0x43)
+0x000 Ulong1 : 0x860f020c
+0x004 PoolTag : 0x64636261
+0x004 AllocatorBackTraceIndex : 0x6261
+0x006 PoolTagHash : 0x6463

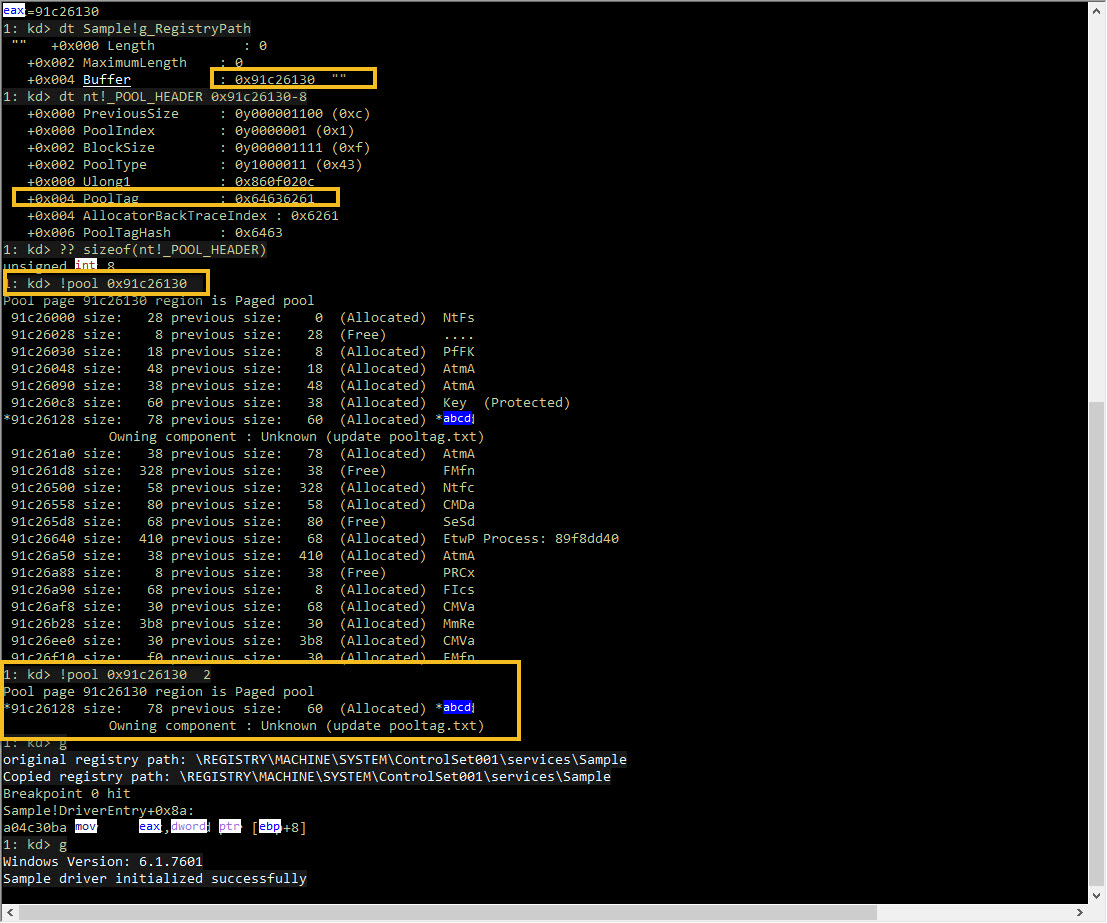

1: kd> !pool 0x91c26130 2
Pool page 91c26130 region is Paged pool
*91c26128 size: 78 previous size: 60 (Allocated) *abcd
Owning component : Unknown (update pooltag.txt)
1: kd> g
original registry path: \REGISTRY\MACHINE\SYSTEM\ControlSet001\services\Sample
Copied registry path: \REGISTRY\MACHINE\SYSTEM\ControlSet001\services\Sample
Breakpoint 0 hit
Sample!DriverEntry+0x8a:
a04c30ba mov eax,dword ptr [ebp+8]
1: kd> g
Windows Version: 6.1.7601
Sample driver initialized successfully
# Later on when the driver is unloaded, it's unload routine that frees up memory is invoked
Break instruction exception - code 80000003 (first chance)
nt!ExFreePoolWithTag+0x649:
82b30104 int 3
1: kd> kvn
# ChildEBP RetAddr Args to Child
00 8772dba0 82d40f90 91c26130 64636261 a0a4f900 nt!ExFreePoolWithTag+0x649
01 8772dbb4 a04c3014 91c26130 64636261 8772dc00 nt!VerifierExFreePoolWithTag+0x30
02 8772dbc4 82bd5d46 86a220d0 a0a4f900 84efcd48 Sample!SampleUnload+0x14 (FPO: [Non-Fpo]) (CONV: stdcall) [J:\dev\temp\driver\kerprg2\Chapter02\Sample\Sample.cpp @ 11]
03 8772dc00 82a8baab a0a4f900 00000000 84efcd48 nt!IopLoadUnloadDriver+0x1e
04 8772dc50 82c17f5e 00000001 5e0b8526 00000000 nt!ExpWorkerThread+0x10d
05 8772dc90 82abf219 82a8b99e 00000001 00000000 nt!PspSystemThreadStartup+0x9e
06 00000000 00000000 00000000 00000000 00000000 nt!KiThreadStartup+0x19
1: kd> g
Sample driver Unload called
Now build driver with memory leak inside unload routine
enable driver verifier and comment the code that frees up the memory
void SampleUnload(_In_ PDRIVER_OBJECT DriverObject) {
UNREFERENCED_PARAMETER(DriverObject);
//ExFreePoolWithTag(g_RegistryPath.Buffer, DRIVER_TAG);
KdPrint(("Sample driver Unload called\n"));
}
Reload faulty driver again and during unload we hit bugcheck caught by verifier
0: kd> g
*******************************************************************************
*
* This is the string you add to your checkin description
* Driver Verifier: Enabled for Sample.sys on Build 7601 rCq7yw90VwDkyhs4XybI3G
*
*******************************************************************************
# This is same as previous without PoolHitTag getting hit.
Break instruction exception - code 80000003 (first chance)
nt!ExAllocatePoolWithTag+0x881:
82b2f88c int 3
0: kd> kvn
# ChildEBP RetAddr Args to Child
00 87745834 82ab06b1 000000c1 00000070 64636261 nt!ExAllocatePoolWithTag+0x881
01 8774585c 82d40cba 000000c1 00000070 64636261 nt!ExAllocatePoolWithTagPriority+0x196
02 87745890 82d4074f 000000c1 00000070 64636261 nt!VeAllocatePoolWithTagPriority+0x1a7
03 877458ac a05c1047 00000001 0000006c 64636261 nt!VerifierExAllocatePoolWithTag+0x1e
04 877459d8 82bd22e6 86a55b90 84f27000 00000000 Sample!DriverEntry+0x27 (FPO: [Non-Fpo]) (CONV: stdcall) [J:\dev\temp\driver\kerprg2\Chapter02\Sample\Sample.cpp @ 16]
05 87745bbc 82bd5d98 00000001 00000000 87745be4 nt!IopLoadDriver+0x7ed
06 87745c00 82a8baab 91f8cbd0 00000000 84efda70 nt!IopLoadUnloadDriver+0x70
07 87745c50 82c17f5e 00000001 5e0d0526 00000000 nt!ExpWorkerThread+0x10d
08 87745c90 82abf219 82a8b99e 00000001 00000000 nt!PspSystemThreadStartup+0x9e
09 00000000 00000000 00000000 00000000 00000000 nt!KiThreadStartup+0x19
0: kd> .frame 0n4;dv /t /v
04 877459d8 82bd22e6 Sample!DriverEntry+0x27 [J:\dev\temp\driver\kerprg2\Chapter02\Sample\Sample.cpp @ 16]
877459e0 struct _DRIVER_OBJECT * DriverObject = 0x86a55b90 Driver "\Driver\Sample"
877459e4 struct _UNICODE_STRING * RegistryPath = 0x84f27000 "\REGISTRY\MACHINE\SYSTEM\ControlSet001\services\Sample"
877458c0 struct _OSVERSIONINFOW info = struct _OSVERSIONINFOW
0: kd> g
Breakpoint 0 hit
Sample!DriverEntry+0x2c:
a05c104c cmp dword ptr [Sample!g_RegistryPath+0x4 (a05c300c)],0
0: kd> dt sample!g_RegistryPath
"" +0x000 Length : 0
+0x002 MaximumLength : 0
+0x004 Buffer : 0x86491d10 ""
0: kd> !pool 0x86491d10 2
Pool page 86491d10 region is Paged pool
*86491d08 size: 78 previous size: 30 (Allocated) *abcd
Owning component : Unknown (update pooltag.txt)
0: kd> g
original registry path: \REGISTRY\MACHINE\SYSTEM\ControlSet001\services\Sample
Copied registry path: \REGISTRY\MACHINE\SYSTEM\ControlSet001\services\Sample
Windows Version: 6.1.7601
Sample driver initialized successfully
# But during driver unload, we hit a bugcheck since driver verifier is enabled
# and allocations don't match the frees for driver
Sample driver Unload called
*** Fatal System Error: 0x000000c4
(0x00000062,0x86A84EBC,0x86A2D4F8,0x00000001)
Break instruction exception - code 80000003 (first chance)
A fatal system error has occurred.
Debugger entered on first try; Bugcheck callbacks have not been invoked.
A fatal system error has occurred.
For analysis of this file, run !analyze -v
nt!RtlpBreakWithStatusInstruction:
82a89110 int 3
1: kd> !analyze -v
Connected to Windows 7 7601 x86 compatible target at (Wed Oct 13 10:49:09.459 2021 (UTC + 5:30)), ptr64 FALSE
Loading Kernel Symbols
...............................................................
................................................................
........................
Loading User Symbols
.................................
Loading unloaded module list
..........
*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************
DRIVER_VERIFIER_DETECTED_VIOLATION (c4)
A device driver attempting to corrupt the system has been caught. This is
because the driver was specified in the registry as being suspect (by the
administrator) and the kernel has enabled substantial checking of this driver.
If the driver attempts to corrupt the system, bugchecks 0xC4, 0xC1 and 0xA will
be among the most commonly seen crashes.
Arguments:
Arg1: 00000062, A driver has forgotten to free its pool allocations prior to unloading.
Arg2: 86a84ebc, name of the driver having the issue.
Arg3: 86a2d4f8, verifier internal structure with driver information.
Arg4: 00000001, total # of (paged+nonpaged) allocations that weren't freed.

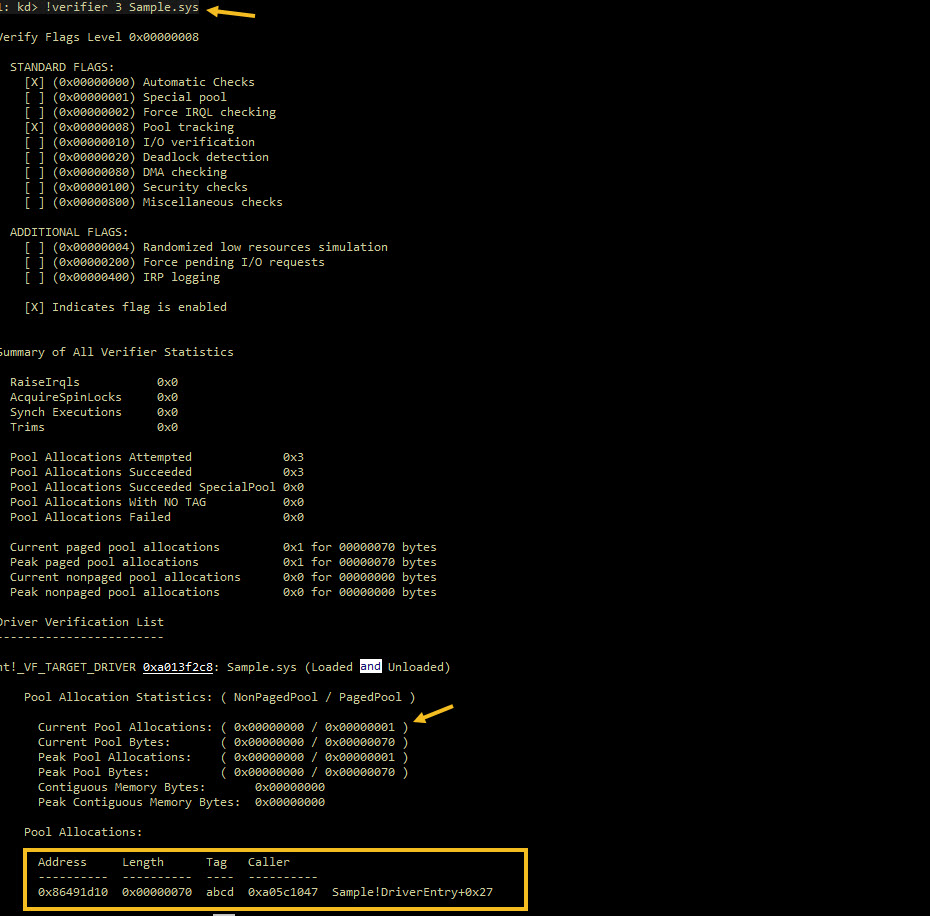

Type !verifier 3 drivername.sys for info on the allocations
that were leaked that caused the bugcheck.
Debugging Details:
------------------
KEY_VALUES_STRING: 1
Key : Analysis.CPU.Sec
Value: 3
Key : Analysis.DebugAnalysisProvider.CPP
Value: Create: 8007007e on TestMachine
